HDPE Fitting
Plastic Quick Connector PP Plumbing Fittings
PP Quick Connector Fittings are versatile components used to quickly and securely join Polypropylene (PP) pipes in various applications. These fittings are commonly used in plumbing, irrigation, HVAC systems, and industrial processes due to their easy installation, leak-proof seals, and durability.
- Diameter: 20mm-110mm
- Pressure: PN10-PN16
- Certificate: ISO9001, OHSAS 18001, ISO14001, etc.
- Packaging: Carton or bag
- Delivery: According to order parameters and quantity
- Minimum order quantity: trial order or mixed loading of 1*20 feet container.
Detailed description of Plastic Quick Connector PP Plumbing Fittings:
PP quick connectors include equal diameter tees, reducing tees, flanges, joints, elbows, ball valves, etc.
PP quick connectors usually adopt plug-in or ferrule connection. The plug-in quick connector is to directly insert the pipe into the corresponding interface of the connector, and achieve sealing and fixing through the built-in seal and locking device; the ferrule quick connector is to tighten the ferrule to make the ferrule hold the pipe tightly to achieve the purpose of sealing and connection. Generally, a sealing ring made of rubber or other elastic materials is installed at the interface of the joint. When the pipe is inserted or the ferrule is tightened, the sealing ring will be squeezed, thus forming a tight seal between the pipe and the joint to prevent fluid leakage.
When the PP quick connector is connected to the pipe, the pipe is inserted into the corresponding interface of the quick connector. The insertion force will deform the sealing ring, fill the gap between the pipe and the joint, and achieve a preliminary seal. For the ferrule-type quick connector, tightening the ferrule will further compress the sealing ring, enhance the sealing effect, and firmly connect the pipe to the joint through the friction between the ferrule and the pipe and the clamping force of the sealing ring. When disconnection is required, for some plug-in quick connectors, it may be necessary to press a specific unlocking button or operate the unlocking device to loosen the locking mechanism and then pull out the pipe; for the ferrule-type quick connector, it is necessary to loosen the ferrule and then pull out the pipe.
Features and advantages of Plastic Quick Connector PP Plumbing Fittings:
Easy installation: No complex tools and professional skills are required, and the connection and disconnection of pipes can be
completed quickly, greatly shortening the installation and maintenance time.
Reliable sealing: Good sealing design and materials ensure that fluid leakage can be effectively prevented under different pressure
and temperature conditions, ensuring the safe operation of the system.
Strong corrosion resistance: The characteristics of PP material enable it to resist corrosion from a variety of chemical substances, suitable for
various harsh chemical environments, and extend the service life of the connector.
Reusable: Under the condition of correct use and maintenance, the quick connector can be repeatedly connected and
disconnected, reducing the cost of use.
Environmental protection and hygiene: PP material meets food hygiene standards, is non-toxic and odorless, and will not pollute the transported fluid. In
addition to the industrial field, it is also widely used in food, beverage, drinking water and other industries with
high hygiene requirements.
Good insulation performance: PP has excellent electrical insulation performance, so PP quick connectors can be used in pipeline systems with
insulation requirements to avoid current conduction and improve safety of use.

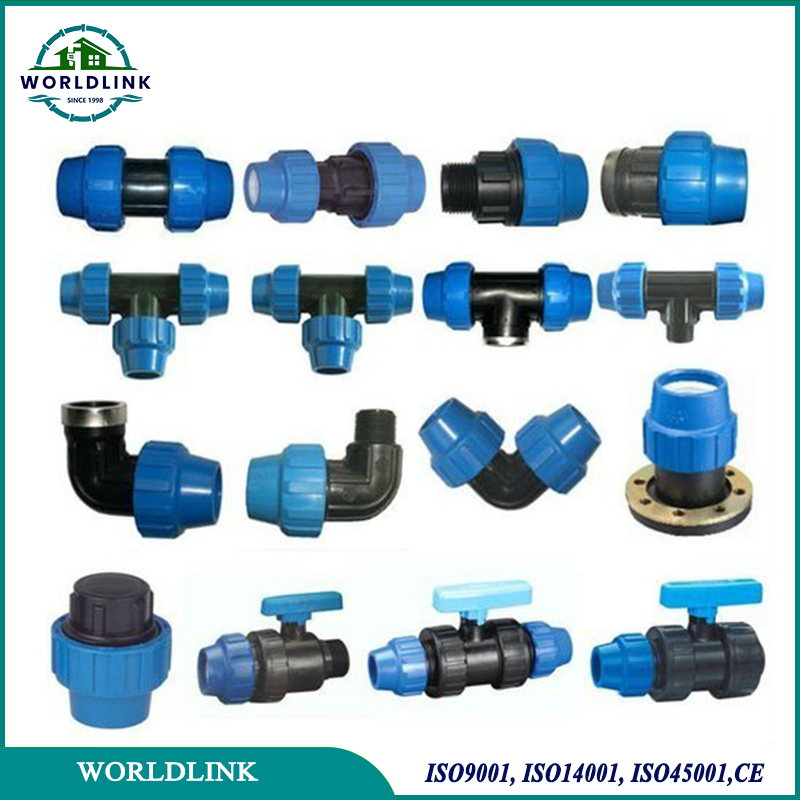

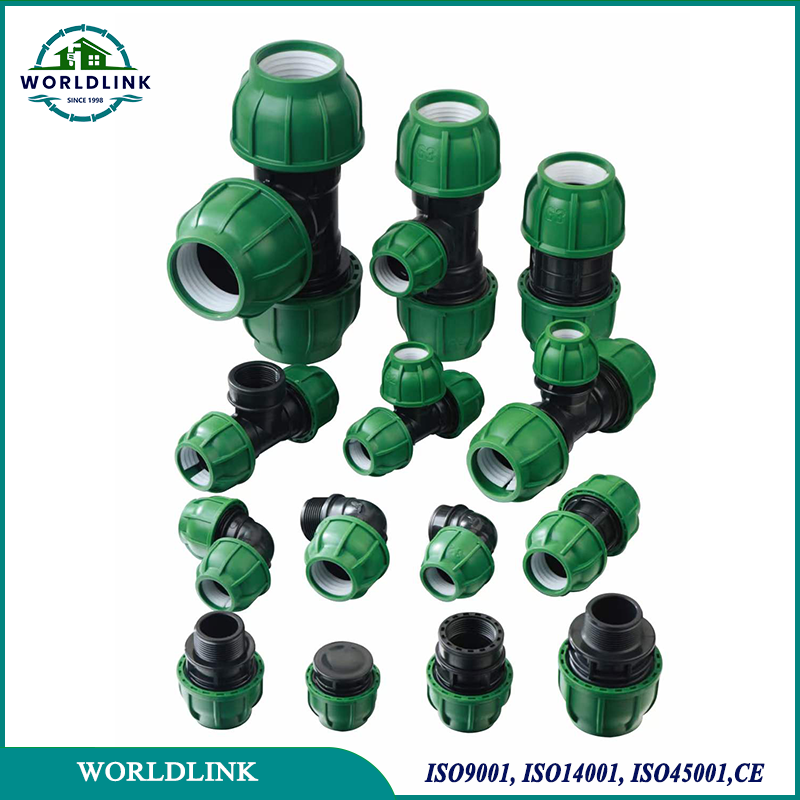

Classification of Plastic Quick Connector PP Plumbing Fittings：
|
|
|
|
|
|
|
|
PPCoupler |
PPReducing coupler |
PPTee |
PPReducing Tee |
PPelbow |
PPThread adapter |
PPMale thread elbow |
|
|
|
|
|
|
|
|
PPInternal thread elbow |
PPExternal thread tee |
PPInternal thread tee |
PPMale thread adapter |
PPCompression flange adapter |
PPCompression cap |
PPBall valve |
| Products details information | |
| Product name | Polypropylene(PP) conpression fittings for polyethylene(PE) pipe |
| Brand | Bingo pipeline(Customer brand is available) |
| Dia Ranges | DN20-110mm(1/2 inch-4 inch) |
| Pressure Class | from PN10 to PN16 |
| Raw material | Polypropylene(PP) |
| Application | HDPE Fittings for water, oil and gas, mining, marine, drainage, chemincal, Irrigation, fire fighting... |
| Color | Black or Blue |
| Category | Quick connection fittings, Thread male and female fitting, tee, elbow, reducer, reducer tee, cap... |
| Matching products | HDPE pipe fittings, Customized PE fittings, DI/ Steel backing ring flanges, Valves, water meter, flow gauge, welding machines and tools, etc. |
| Company/Factory Strength | |
| Production Capacity | 120*40ft containers/month |
| Sample | Free sample could be provided |
| Quality | QA & QC system, Ensure traceability of each process |
| Warranty | 50 years with normal use |
| Certificates | ISO9001, OHSAS 18001, ISO14001,CE... |
| Delivery time | 5-30 days, depending on the quantity |
| Test/Inspection | National Standard Laboratory/ Pre-delivery inspection |
| Service | Research, Design, manufacture, Test, Sales, Solution Providing, After-sale service |
| Management | Effective 8S Management System |
| No. of employees | More than 300 people |
Plastic Quick Connector PP Plumbing Fittings are mainly used in the following scenarios:
Chemical industry: Due to
the corrosion resistance of PP quick connectors, they are often used in chemical raw material delivery pipeline
systems. They can quickly connect and disconnect different chemical equipment or pipelines, which is convenient for
equipment maintenance, overhaul and process flow adjustment.
Water treatment industry: In water treatment
systems, such as water plants and sewage treatment plants, they are used to connect various water treatment
equipment, pipelines and instruments. Its quick connection and disconnection characteristics facilitate the
installation, commissioning and maintenance of equipment and improve work efficiency.
Drip irrigation system: In
drip irrigation systems such as vegetable greenhouses and flower planting, PP quick connectors can connect drippers,
capillary tubes and main pipes. Its quick connection characteristics facilitate the installation and replacement of
damaged drip irrigation parts, help to accurately control the amount of irrigation water, meet crop growth needs,
and save water resources.
Sprinkler irrigation system: In sprinkler irrigation facilities in orchards and
farmlands, PP quick connectors are used to connect sprinklers, branch pipes and main pipes. Farmers can quickly
assemble and disassemble sprinkler pipes as needed, easily adjust the position of sprinkler heads and irrigation
range, improve irrigation efficiency, and facilitate the storage and preservation of equipment during the
non-irrigation season.
