Geomembrane Welding Machine

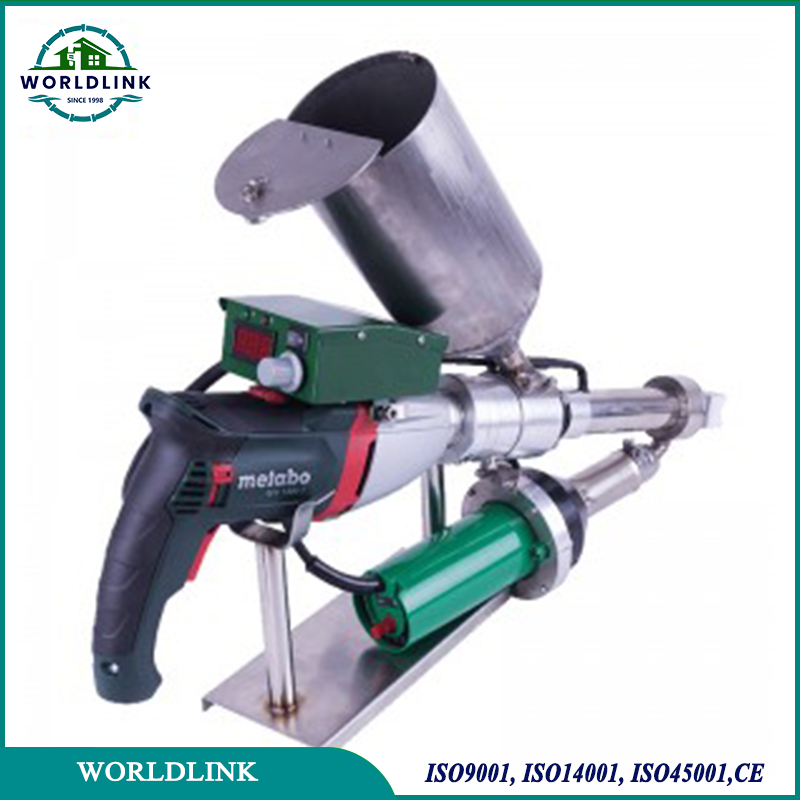

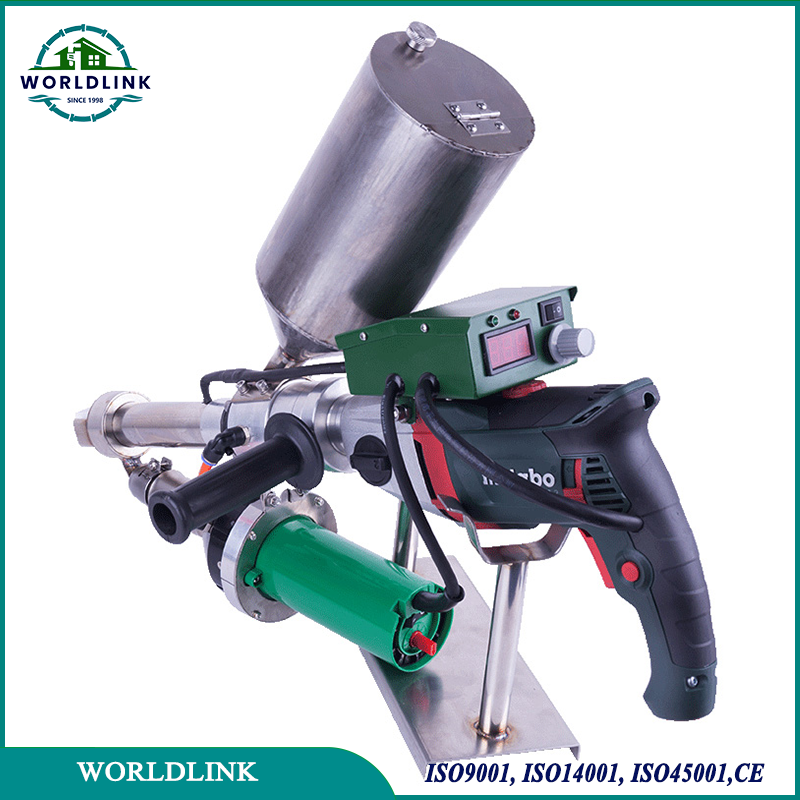

Extrusion Welders Gun for Plastic Welding BGT-620
Extrusion Welders Gun for Plastic Welding BGT-620 is a new hot air welding machine developed by introducing advanced foreign technology
- Input voltage: 230V
- Motor power: 1300W
- Hot air temperature: 20~620℃ (adjustable)
- Plastic extrusion temperature: 50~380℃ (adjustable)
- Extrusion capacity: 2.0~3.5Kg/h
- Certification:CE
- Warranty: One year
- Delivery time: In stock, fast delivery
Description of Extrusion Welders Gun for Plastic Welding BGT-620
The plastic extrusion welding gun BGT-620 is the first plastic granule extrusion welding machine in China with a dual-channel independent heating system, a digital display temperature controller, a 360-degree rotating welding head and motor cold start protection. It is suitable for welding construction of hot-melt materials such as polyethylene (PE) and polypropylene (PP).
Advantages of plastic extrusion welding gun BGT-620:
1. Can provide in small batch orders and support customized services
2. Compatible with 120V/230V dual voltage, equipped with EU standard, US standard, UK standard power plug
3. The control system is equipped with an LCD display screen with high parameter visualization
4. The intelligent temperature control system adopts a dual protection mechanism: drive motor cold start protection + automatic heating temperature compensation function, which effectively improves the reliability of the welding gun, reduces the fault rate of bad operation, and extends the service life of the equipment
|
|
|
|

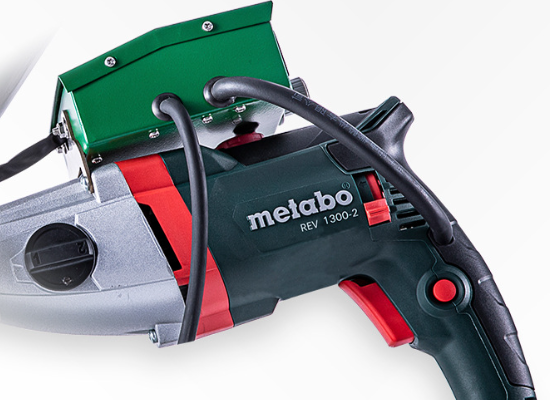

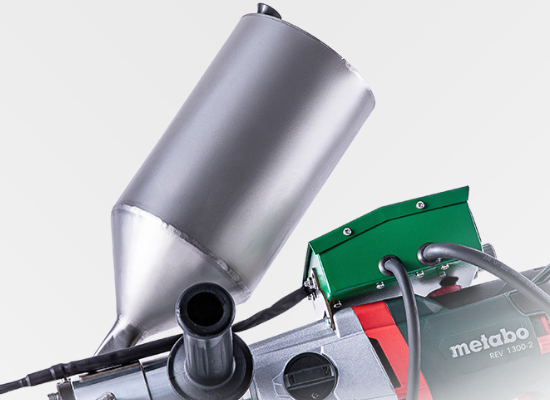

Dual heating system |
Temperature display |
Rotating nozzle |
Extrusion Welders Gun for Plastic Welding BGT-620 inspection and debugging process
The plastic extrusion welding gun BGT-620 undergoes strict testing and debugging before leaving the factory to ensure that the equipment is in good condition and operates normally, and is debugged to the standard working condition to ensure that users can use it out of the box.
Special inspection tool for plastic extrusion welding gun BGT-620
1. Air pressure tester BGT-T001
2. Vacuum Leak Detector BGT-T002
3. Spark Leak Detector BGT-T003
4. Tensile Tester BGT-T004
Extrusion Welders Gun for Plastic Welding BGT-620 packaging:
| Model | BGT-620 | |
| Rated Voltage | 230V | |
| Frequency | 50/60Hz | |
| Extruding Motor Power | 1300W | |
| Hot Air Power | 1600W | |
| Weiding Rod Heating Power | 800W | |
| Hot Air Temperature | 20-620℃ Adjustable | |
| Plastic Extruding Temperature | 50-380℃ Adjustable | |
| Extruding Volume | 2.0-3.5kg/h | |
| Weiding Rod Diameter | Granules | |
| Net Weight | 8.0KG | |
| Driving Motor | METABO | |
| Digital Display | Yes | |
| Certificate | 5-40 mm | |
| Warranty | CE | |
| Material Thickness Welded | 1 Year | |
| Package(mm) | 580*180*475 | |
| Gross Weight | 13.5KG | |

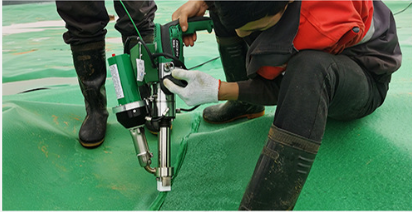

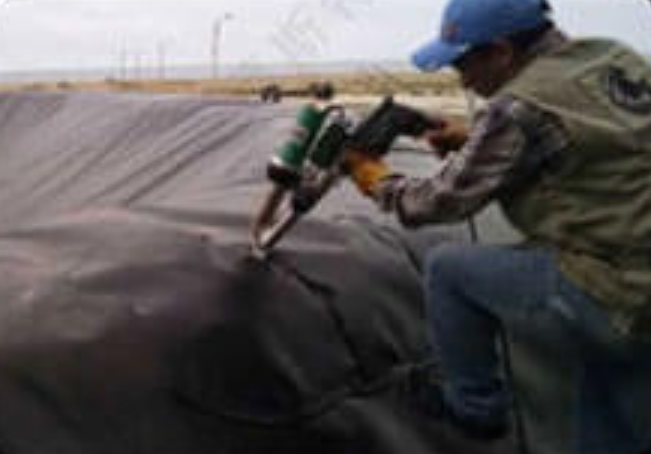

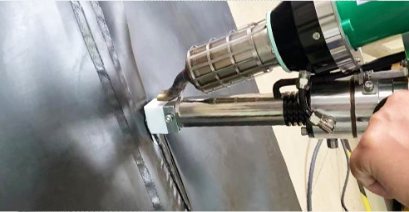

Application areas of plastic extrusion welding gun BGT-620:
The plastic extrusion welding gun BGT-620 is widely used in waterproofing and anti-seepage projects in the fields of tunnels, subways, water conservancy projects, aquaculture, biogas pools, landfills, chemical mines, sewage treatment, roof construction, etc., meeting the long-term sealing requirements under harsh working conditions.
