Geomembrane Welding Machine

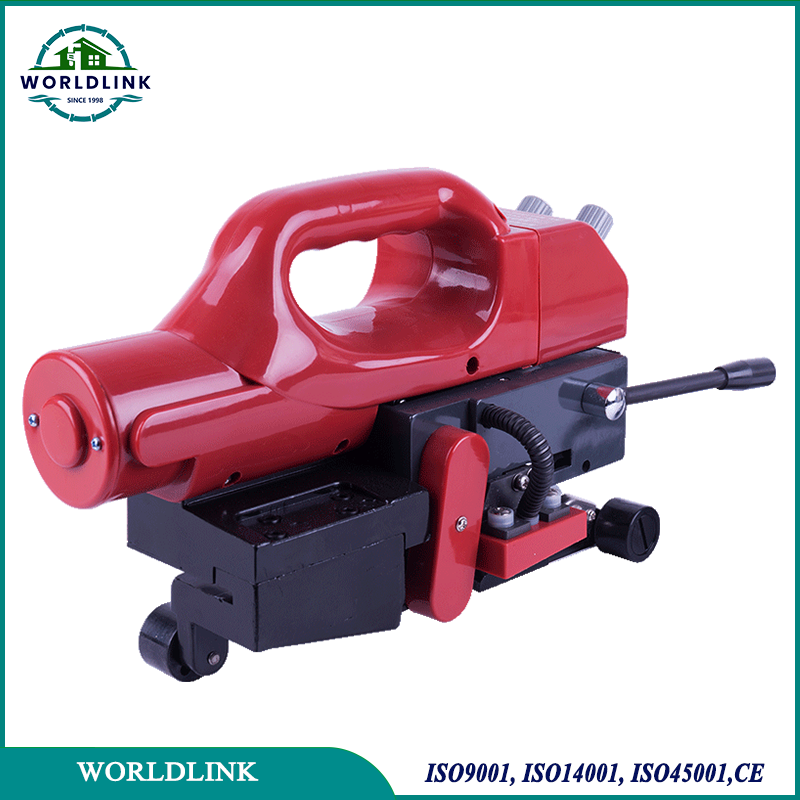

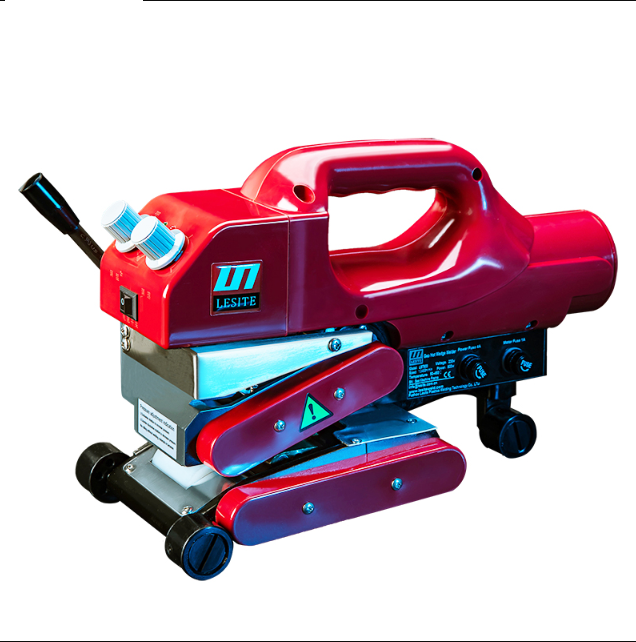

HDPE Geomembrane Welding Machine BGT-800/810/820
The BGT-800/810/820 HDPE geomembrane welding machines are used in the installation and welding of high-density polyethylene (HDPE) geomembranes. These geomembranes are typically used in various applications like landfills, mining, water containment, and other environmental containment systems.
- Input voltage: 230V/120V (customizable)
- Power:800W/1100W
- Welding speed: 0.5~5m/min
- Heating temperature: 50~450℃
- Welding seam width: 12.5 mm *2 strips, cavity 12.5 mm
- Welding material thickness : 0.2 ~ 1.5 mm (single layer thickness )
- Certification:CE
- Warranty: One year
- Delivery time: In stock, fast delivery
Description of HDPE Geomembrane Welding Machine BGT-800/810/820:
HDPE Geomembrane Welding Machine BGT-800/810/820 of automatic hot wedge geomembrane welding machines are high-performers with intelligent welders designed for large-scale geomembrane seam fusion. With advanced digital control systems and enhanced mechanical pressure mechanisms, these models deliver precise, durable, and repeatable welding results in critical waterproofing projects.
This series is ideal for medium to heavy-duty applications, providing greater weld stability, speed, and adaptability to different field conditions and membrane materials.
|
|
|
|
BGT-800 |
BGT-810 |
BGT-820 |
Advantages of HDPE Geomembrane Welding Machine BGT-800/810/820:
1. Standardized production: full mold processing, high assembly precision, high quality temperature, and long service life.
2. Heating system: The special alloy wedge is equipped with a high-power heating tube, which has high heating efficiency and long service life.
3. Pressing wheel mechanism: imported silicone pressing wheel, good elasticity, high temperature resistance and strong wear resistance.
4. Pressure adjustment: The unique pressure adjustment structure can be fine-tuned according to the different materials and thickness of the mold to achieve the appropriate welding effect.
HDPE Geomembrane Welding Machine BGT-800/810/820 wedges:
1. Copper thermal wedges are normally preferred as they have better thermal conductivity than alloys.
2. For some films that corrode after heating, copper has better corrosion resistance than copper and is more suitable.
HDPE Geomembrane Welding Machine BGT-800/810/820 special detection tool
1. Air pressure tester BGT-T001
2. Vacuum Leak Detector BGT-T002
3. Spark Leak Detector BGT-T003
4. Tensile Tester BGT-T004

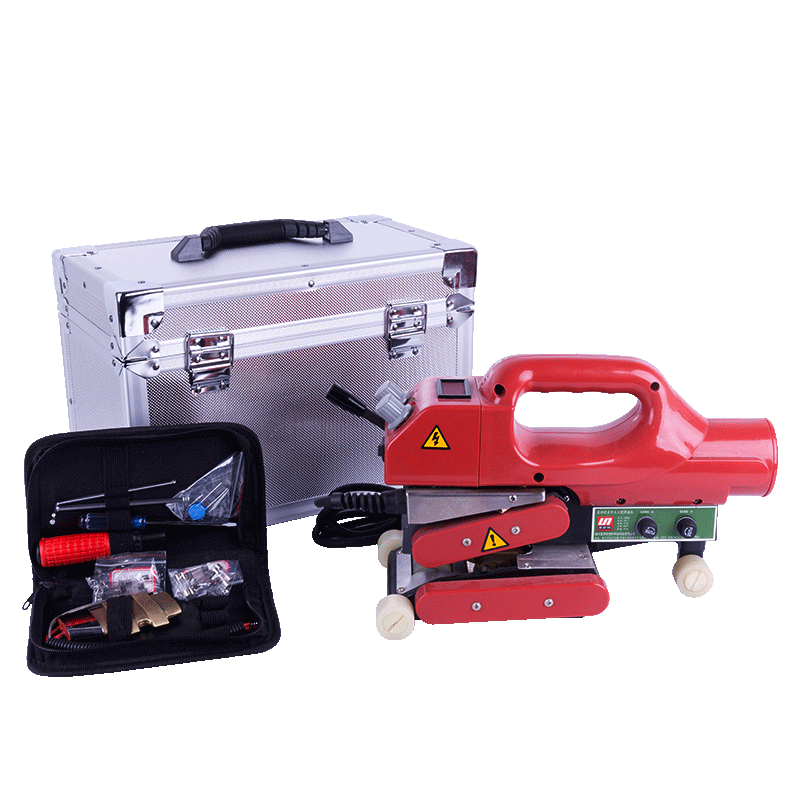

Packaging of HDPE Geomembrane Welding Machine BGT-800/810/820:
| Modelo | BGT-700 | BGT-800 | BGT-800D | BGT-810 | BGT-820 |
| Voltaje nominal | 230V/120V (personalizable) | 230V/120V (personalizable) | 230V/120V (personalizable) | 230V/120V (personalizable) | 230V/120V (personalizable) |
| Frecuencia | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Potencia nominal | 2800W/2200W | 800W/1100W | 800W/1100W | 800W/1100W | 800W/1100W |
| Peso neto | 7,5 KG | 5,0 KG | 5,0 KG | 5,5 KG | 6,0 KG |
| Ancho de solape | 16 CM | 10 CM | 10 CM | 15 CM | 20 CM |
| Velocidad de soldadura | 0,5-3,5 m/min | 0,5-5,0 m/min | 0,5-5,0 m/min | 1,0-5,0 m/min | 0,5-5,0 m/min |
| Temperatura de calentamiento | 50-620℃ ajustable | 50-450℃ ajustable | 50-450℃ ajustable | 50-450℃ ajustable | 50-450℃ ajustable |
| Presión de soldadura | 100-1000N | 100-1000N | 100-1000N | 100-1000N | 100-1000N |
| Ancho de soldadura | 15mm x 2, cavidad interior 15mm | 12,5mm x 2, cavidad interior 12mm | 15mm x 2, cavidad interior 12mm | 12,5mm x 2, cavidad interior 12mm | 15mm x 2, cavidad interior 12mm |
| Resistencia de soldadura | ≥85 % de los materiales | ≥85 % de los materiales | ≥85 % de los materiales | ≥85 % de los materiales | ≥85 % de los materiales |
| Espesor del material soldado | 0,5-2,0 mm (capa simple) | 0,2-1,5 mm (capa simple) | 0,2-1,5 mm (capa simple) | 0,2-1,5 mm (capa simple) | 0,2-1,5 mm (capa simple) |
| Pantalla digital | Temperatura y velocidad | No | Temperatura y velocidad | No | No |
| Certificación | CE | CE | CE | CE | CE |
| Garantía | 1 año | 1 año | 1 año | 1 año | 1 año |
| Embalaje (mm) | 425*315*310 | 345*200*245 | 345*200*245 | 345*200*245 | 345*200*245 |
| Peso bruto | 14 KG | 8,5 KG | 8,5 KG | 8,5 KG | 8,5 KG |

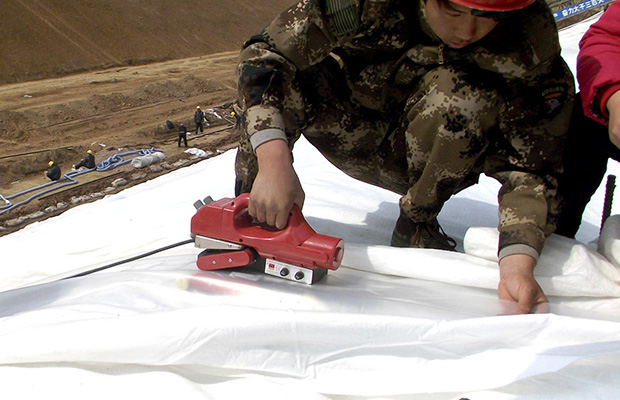

HDPE Geomembrane Welding Machine BGT-800/810/820 having the temperature control adopts automatic constant temperature PID control. The welding machine has excellent performance with easy operation, high welding speed and good welding quality. It can be widely used for the following:
Environmental protection, sanitation (such as domestic waste landfills, sewage treatment plants, power plant regulating ponds, industrial and hospital solid waste, etc.)

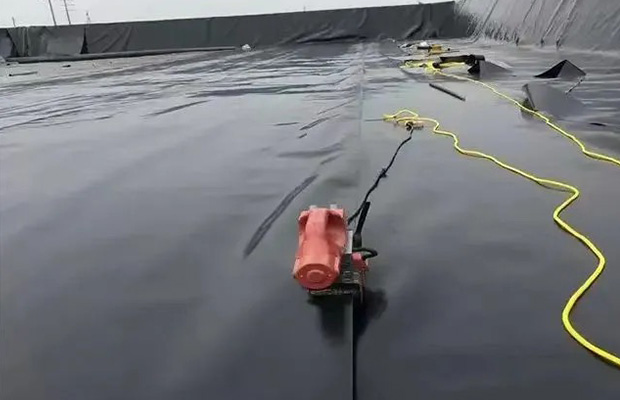

Water conservancy (such as anti-seepage, plugging and reinforcement of dams and embankments of rivers, lakes, reservoirs, anti-seepage of canals, vertical core walls, slope protection, etc.)
Municipal engineering (subway, underground engineering of buildings, planted roofs, anti-seepage of roof gardens, lining of sewage pipes, etc.)
Gardens (artificial lakes, rivers, reservoirs, golf course pond linings, slope protection, green lawn waterproofing and moisture-proofing, etc.)
