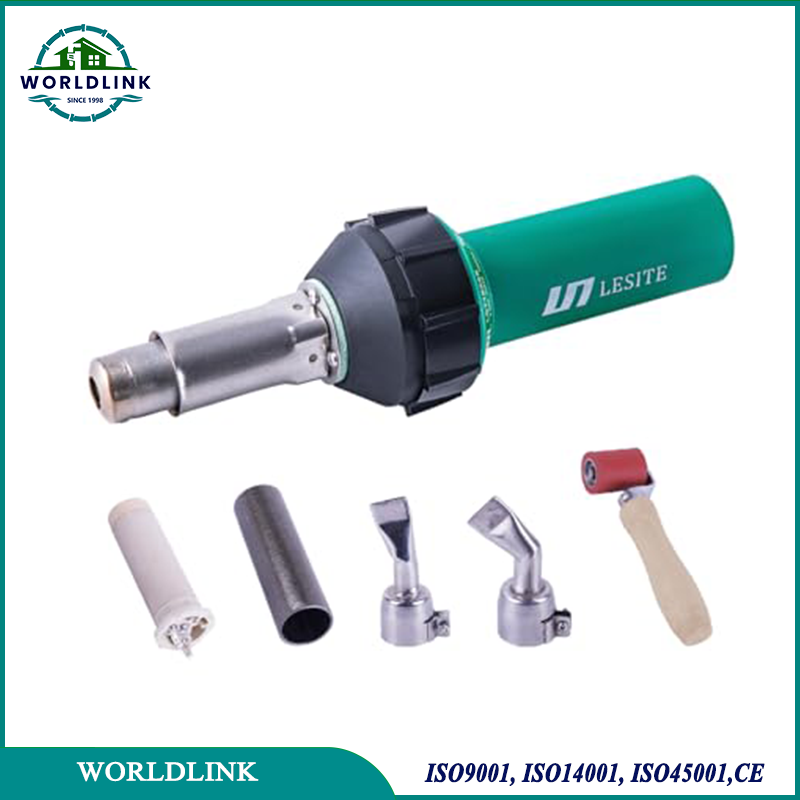

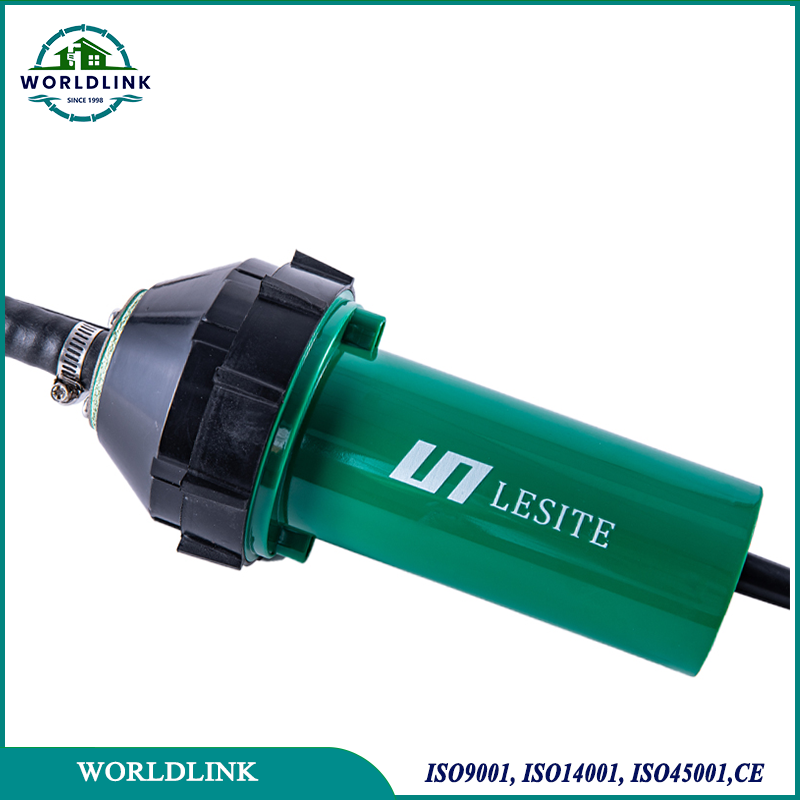

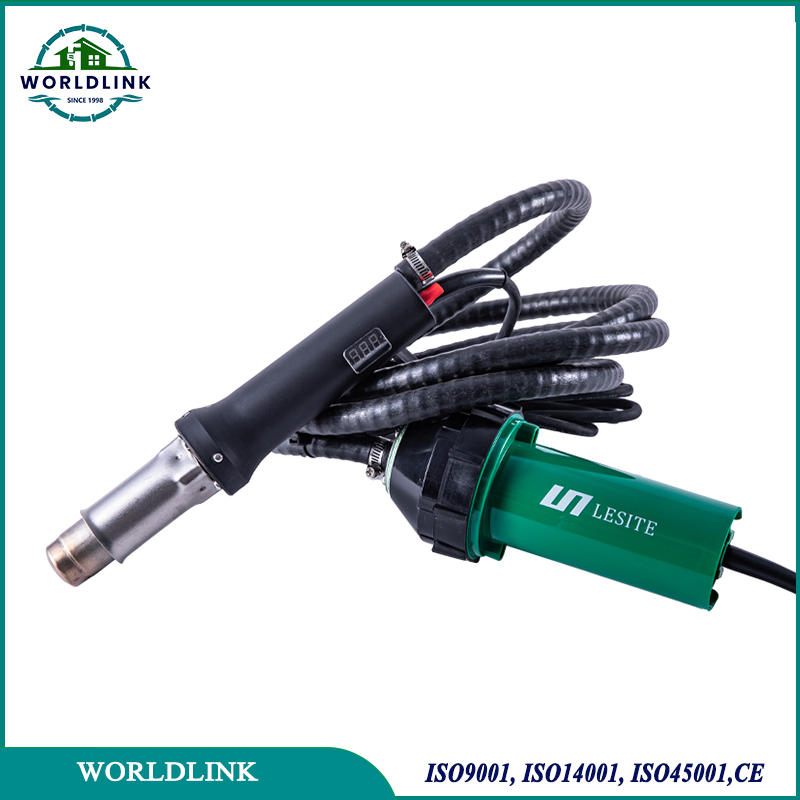

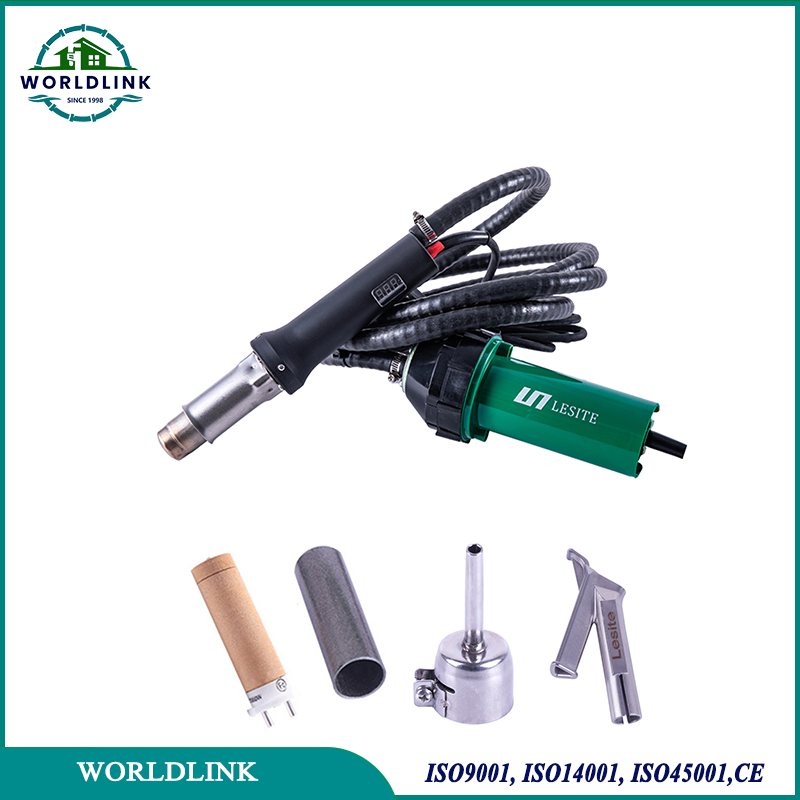

Plastic Hot Air Welder Heating Gun BGT-2000
The BGT-2000 manual hot air welding gun is a versatile tool designed for plastic welding applications. It is typically used for welding and repairing thermoplastic materials through the use of hot air to soften the material, allowing for seamless fusion of the plastic surfaces. Below are the key features, applications, and benefits of the BGT-2000 hot air welding gun.
- Voltage:230V/120V
- Power: 1600W
- Temperature adjustment range: 20~620℃
- Air volume: MAX 180L/min
- Noise: ≤ 65 Db
- Certification: CE
- Warranty: One year
- Delivery time: In stock, fast delivery
Description of Plastic Hot Air Welder Heating Gun BGT-2000:
Plastic Hot Air Welder Heating Gun BGT-2000 adopts double insulation, constant temperature control, and continuous adjustment. It is suitable for welding various thermoplastics such as PVC, PE, PP, HDPE, PVC-U, PVDF, etc. It adopts advanced hot air technology, and the welding gun can generate a stable high-temperature hot air flow for melting and connecting two pieces of material. This series of products is efficient, reliable and flexible, and is suitable for small welding projects, maintenance and on-site operations.
Plastic Hot Air Welder Heating Gun BGT-2000 key features:

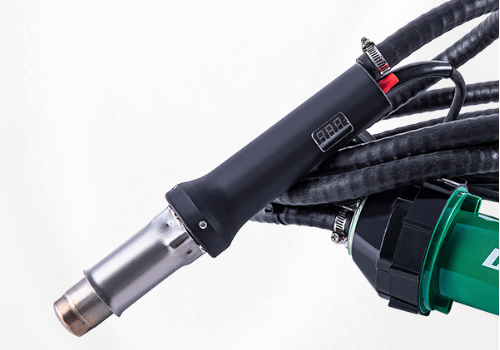

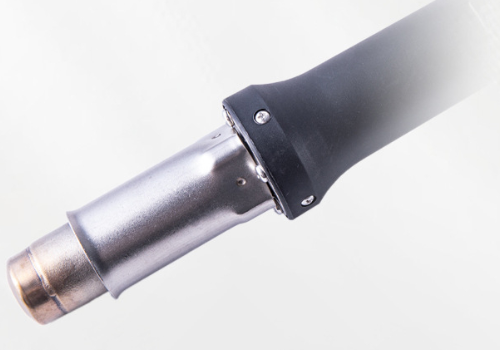

1. Welding gun tip: Suitable for a variety of stainless steel welding tips, which can be freely matched according to application requirements.
2. Heating core: Imported heating wire, heat-resistant ceramic and silver-plated terminals, can work continuously for 24 hours in high temperature environment.
3. Dynamic balancing test: All motors are tested for balancing so that the fan blades do not pull sideways during rotation, thus achieving a steady air flow without vibration.

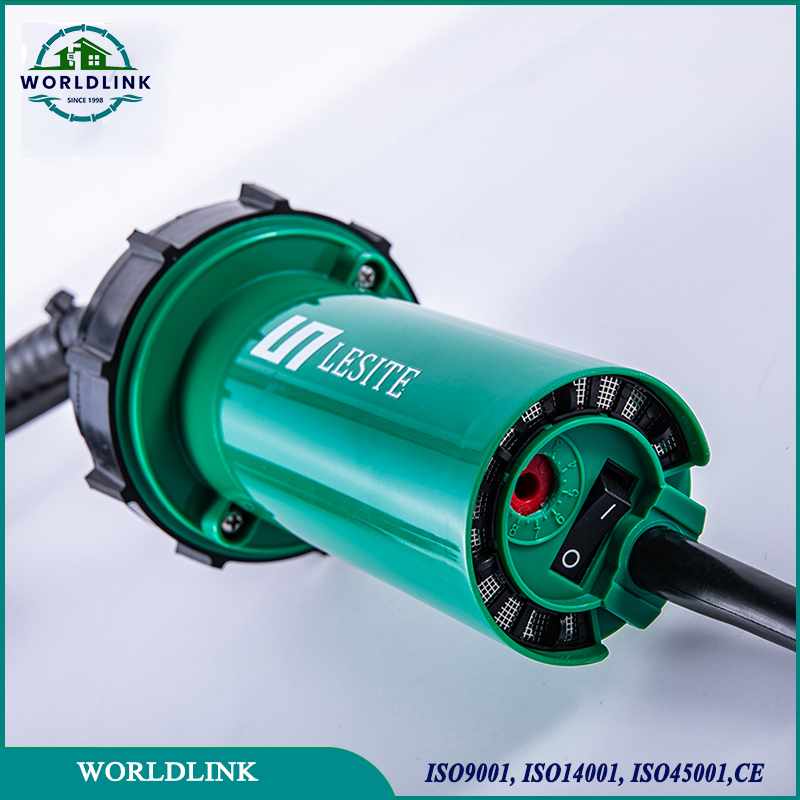

4. Temperature control system: stepless temperature adjustment between 0-600°C, with filtering protection, automatic protection when the temperature exceeds the limit to avoid damage to the heating core.
5. Wind source motor: The wind source drive motor is integrated inside the handle, using imported German motor and can work continuously.
|
|
|
|
Dynamic balance test |

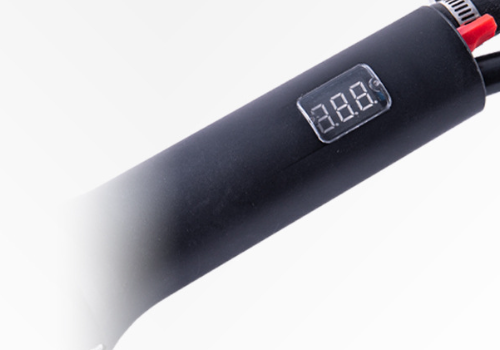

Temperature control system |

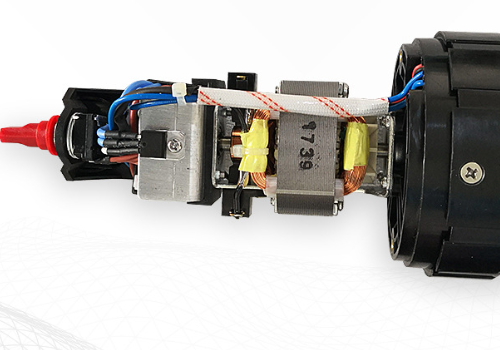

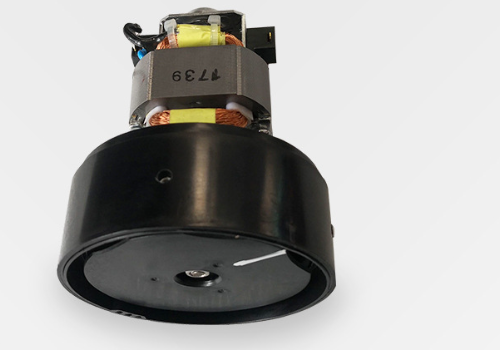

Wind source motor |
Accessories of manual hot air welding gun BGT-2000:
|
|
|
|
Round Mouth |
Quick welding nozzle (triangular hole) |
Quick welding (round hole) |
|
|
|
|
Spot welding nozzle |
2 cm flat mouth |
4 cm flat mouth |
Plastic Hot Air Welder Heating Gun BGT-2000 operation steps:
Preparation: Connect the power supply, check whether the temperature control system of the welding gun is normal, and ensure that the nozzle of the welding gun is clean and unobstructed.
Set temperature and wind speed: Adjust the appropriate temperature and wind speed according to the type and thickness of the welding material.
Heating and welding: Aim the welding gun nozzle at the welding area and gently move the welding gun to make the welding area evenly heated and molten.
Cooling and inspection: After welding, let it cool and check whether the weld is uniform and whether the welding strength meets the requirements.
| Model | BGT-2000 |
| Input Voltage | 230V/120V |
| Frequency | 50/60Hz |
| Rated Power | 1600W |
| Temperature Adjustment Range | 20~620℃ |
| Noise | ≤ 65 dB |
| Weight | 2.4 kg |
| Handle Size | Φ 42 mm |
| Air Hose | 3 m |
| Digital Display | |
| Overheat Protection | ▪ |
| Temperature Control | Open-loop |
| Certification | CE |
| Warranty Period | 1 year |
Plastic Hot Air Welder Heating Gun BGT-2000 is widely used in the following fields:
PVC, PE, PP and other plastic welding: widely used in ground membrane, pond waterproofing, pipeline repair and other fields.
Outdoor and on-site construction: It can be operated in high temperature, low temperature and various harsh environments, and is suitable for rapid on-site repair, maintenance and welding.
Industrial production line: used for welding, heating, shrinking and other processes of thermoplastics such as large equipment and packaging materials.
Vehicle and vessel maintenance: It can be used for vehicle and vessel maintenance made of materials such as PVC and PP, and is especially suitable for processing complex parts such as vehicle body edges and seams.
